旋转吊环螺钉
又称万向吊环螺钉。
材质采用优质进口合金结构钢，模锻工艺
吊环锻制而成。
最大试验载荷为额定载荷的2倍，最小破断载荷为额定载荷的4倍。
锻件经热处理。

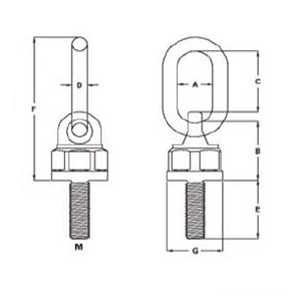

产品示意图与参数
产品示意图
产品参数
|
产品编号 |
螺纹规格 |
拉力 (kg) |
主要技术参数(mm) |
自重（kg） |
||||||
|
A |
B |
C |
D |
E |
F |
G |
||||
|
UQ08-01 |
M8X1.25 |
400 |
28.6 |
39.0 |
31.8 |
7.90 |
12.0 |
85.8 |
36.0 |
0.27 |
|
UQ08-02 |
M10X1.5 |
500 |
28.6 |
39.0 |
31.8 |
7.90 |
19.0 |
85.8 |
36.0 |
0.27 |
|
UQ08-03 |
M12X1.75 |
1050 |
35.0 |
67.0 |
58.0 |
12.7 |
19.1 |
149.8 |
60.0 |
1.20 |
|
UQ08-04 |
M14X2.0 |
1150 |
35.0 |
67.0 |
58.0 |
12.7 |
31.8 |
149.8 |
60.0 |
1.20 |
|
UQ08-05 |
M16X2.0 |
1200 |
35.0 |
67.0 |
58.0 |
12.7 |
31.8 |
149.8 |
60.0 |
1.20 |
|
UQ08-06 |
M20X2.5 |
1900 |
40.0 |
78.3 |
67.0 |
19.1 |
38.1 |
178.7 |
70.0 |
2.21 |
|
UQ08-07 |
M22X2.5 |
2150 |
40.0 |
78.3 |
67.0 |
19.1 |
38.1 |
178.7 |
70.0 |
2.21 |
|
UQ08-08 |
M24X3.0 |
4200 |
40.0 |
78.3 |
67.0 |
19.1 |
38.1 |
178.7 |
70.0 |
2.21 |
|
UQ08-09 |
M30X3.5 |
5000 |
51.6 |
93.1 |
95.0 |
22.2 |
50.0 |
227.4 |
80.0 |
386 |
|
UQ08-10 |
M33X3.5 |
7000 |
51.6 |
93.1 |
95.0 |
22.2 |
50.0 |
227.4 |
80.0 |
3.86 |
|
UQ08-11 |
M36X4.0 |
8000 |
51.6 |
93.1 |
95.0 |
22.2 |
54.0 |
227.4 |
80.0 |
3.86 |
|
UQ08-12 |
M39X4.0 |
8000 |
51.6 |
93.1 |
95.0 |
22.2 |
58.0 |
227.4 |
80.0 |
3.86 |
|
UQ08-13 |
M42X4.5 |
10000 |
65.0 |
103.7 |
118 |
25.0 |
63.0 |
265.8 |
93.0 |
6.08 |
|
UQ08-14 |
M45X4.5 |
10000 |
65.0 |
103.7 |
118 |
25.0 |
68.0 |
265.8 |
93.0 |
6.08 |
|
UQ08-15 |
M48X5.0 |
10000 |
65.0 |
103.7 |
118 |
25.0 |
68.0 |
265.8 |
93.0 |
6.08 |
|
UQ08-16 |
M56X5.5 |
15000 |
70.0 |
134.9 |
120 |
32.0 |
84.0 |
309.3 |
105 |
10.8 |
|
UQ08-17 |
M60X5.5 |
15000 |
70.0 |
134.9 |
120 |
32.0 |
90.0 |
309.3 |
105 |
10.8 |
|
UQ08-18 |
M64X6.0 |
15000 |
70.0 |
134.9 |
120 |
32.0 |
95.0 |
309.3 |
105 |
10.8 |
?
注：以上旋转吊环螺钉1000只以下为常规库存。
